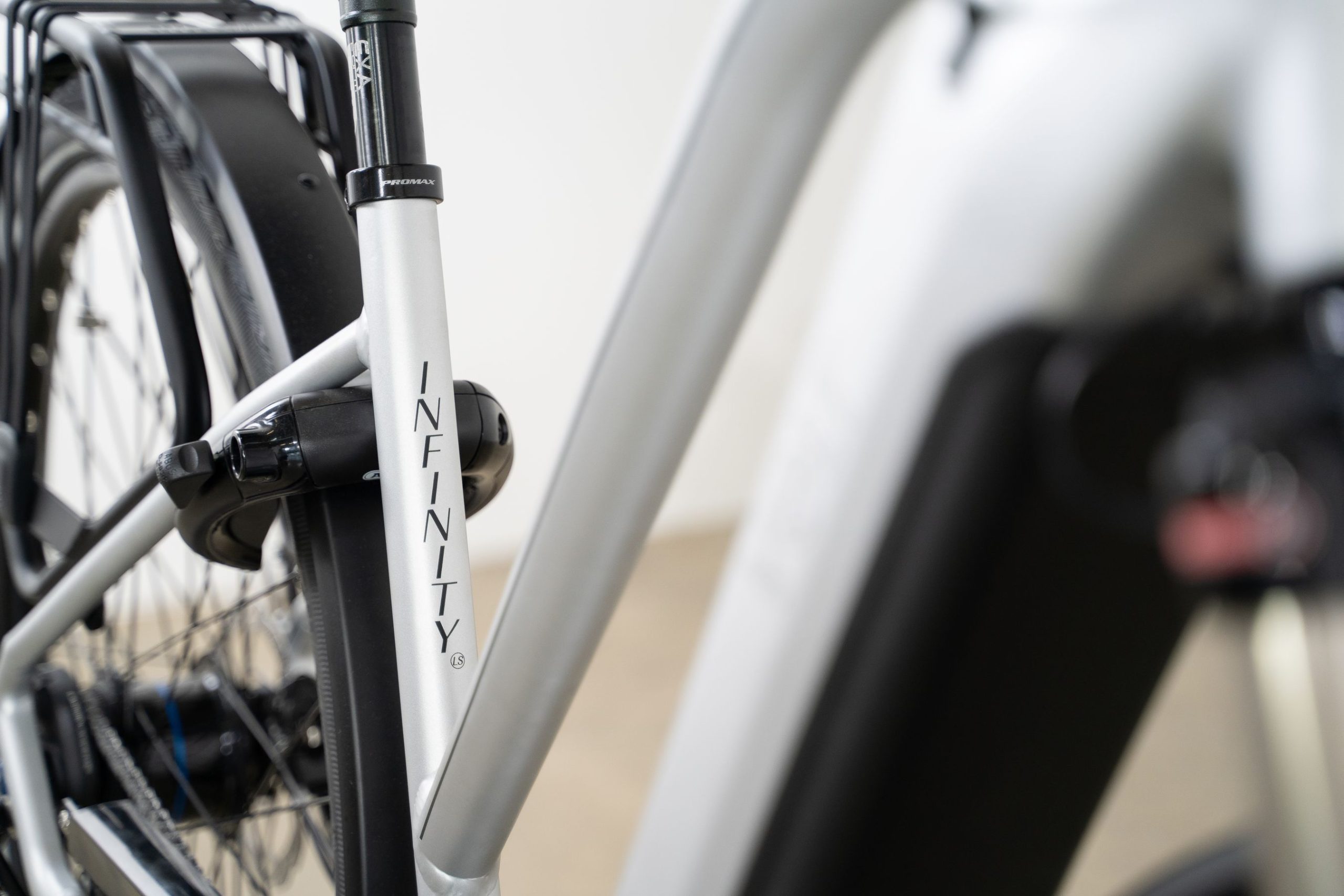

Volt Infinity LS

Loading image... Loading image...

Volt Infinity LS

36V Large 504Wh (90+ Miles)

  • 90 Miles on one charge*
  • Shimano 8 Speed Alfine DI2 Gears
  • 36v Sony battery
  • 15.5mph Shimano STEPS Motor
  • Max Rider Weight: 100kg**
  • 2 Years Peace of Mind Warranty
  • Free UK Delivery to Local Assembly Point

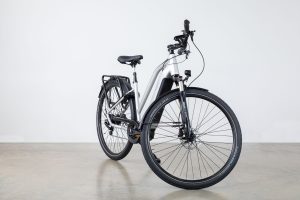

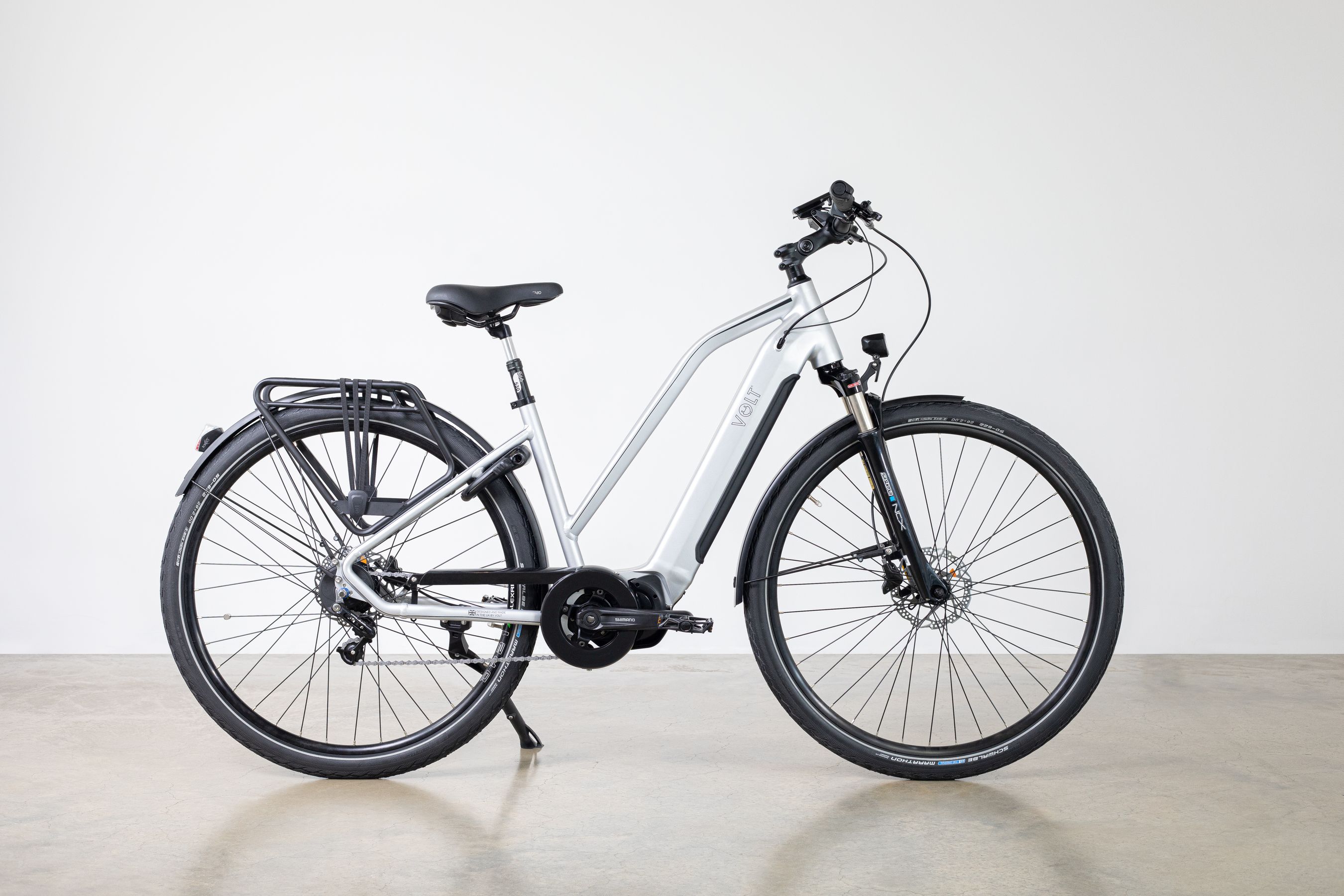

Volt’s newest addition to Volt’s range of low-step E-bikes, the Infinity LS, continues to set the pace as one of their most popular Shimano STEPS bikes.

The new Infinity LS delivers the same power and performance as the original Infinity, yet a convenient low-step design and a smaller frame size makes this powerful e-bike more accessible to a wider range of cyclists.

Along with the Infinity LS’s sleek new colour-way and aesthetic, its 250W Shimano STEPS

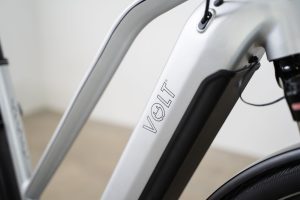

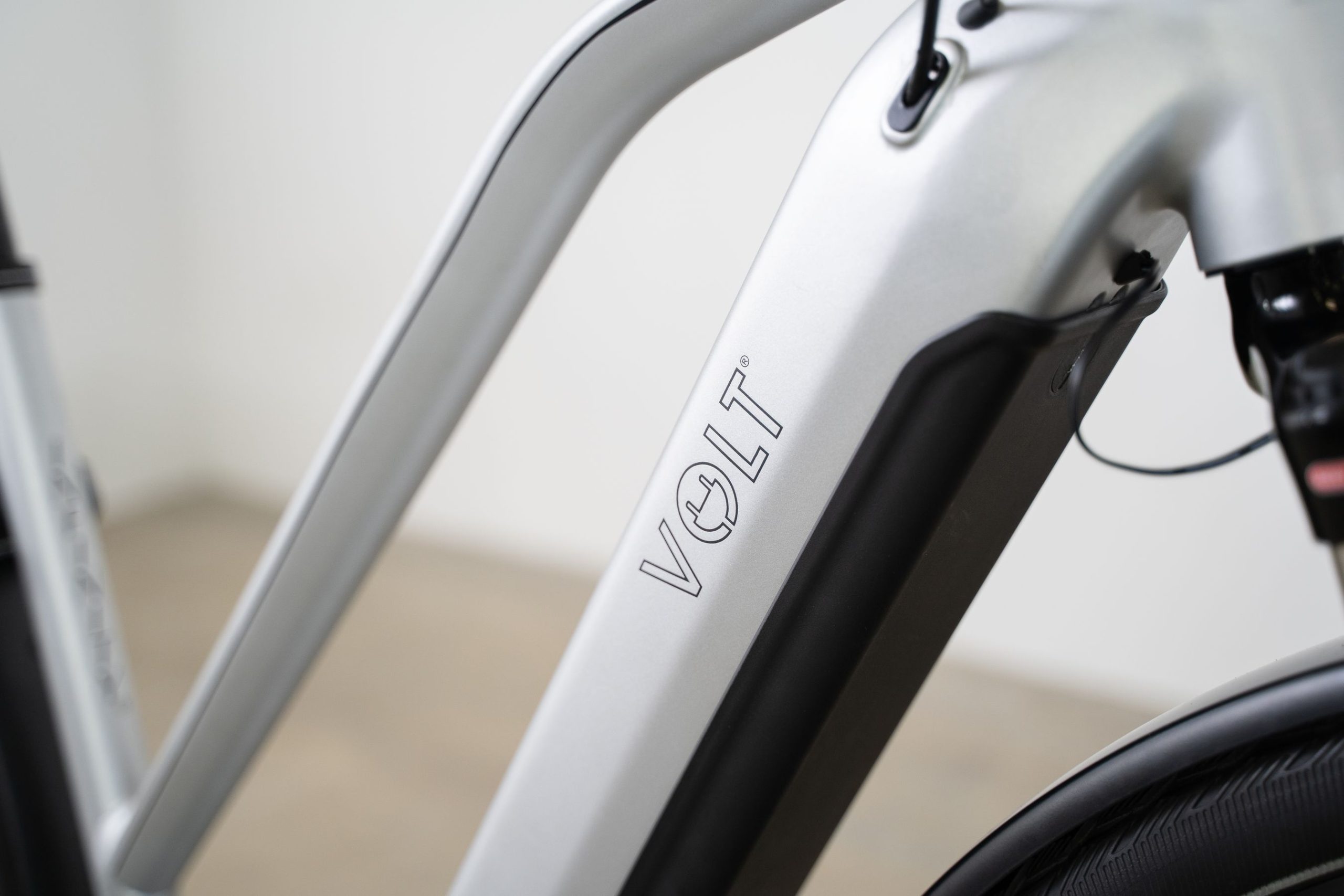

E6100 crank motor is now powered by an integrated (and removable) Sony battery which delivers a range of up to 90+ miles per charge.

The Shimano Alfine Hydraulic brakes and SR Suntour NCX suspension combined give you an incredibly smooth ride, even over the most challenging of terrains. This model is kitted out with 8 speed DI2 gears, the intelligent system will automatically shift the gear down when you stop, (super handy!) making it effortless to get pedalling again.

This original LS has drawn the attention of the press on many occasions and has been featured in magazines like T3 and publications like the Huff Post and Mail on Sunday.

With its revolutionary new ergonomic design, it’s sure to turn even more heads and get more attention than ever!


Finance your Volt E-Bike 0%

Pay just £ deposit followed by 12 monthly payments of £

Total Cost: £

Click Here To Apply


Model: Volt Infinity Shimano STEPS

Category Shimano STEPS E-bike
LCD Display SHIMANO LCD Display Showing Speed, Distance, Battery Power and gear
Frame High Grade Reinforced Aluminium 6061 T6 Frame
Weight 23.5 kg without batteries / 26.4 kg with battery
Max Weight (rider+luggage) 120 Kg
Frame Size 17 Inches
Rims Aluminium Double Wall Reinforced Alex Rim DP20
Tyres Kenda
Seat Velo
Seat Post Zoom
Gears Shimano 8 Speed Alfine DI2
Brakes Shimano S700 Alfine Hydraulic Front Disc / Rear Disc

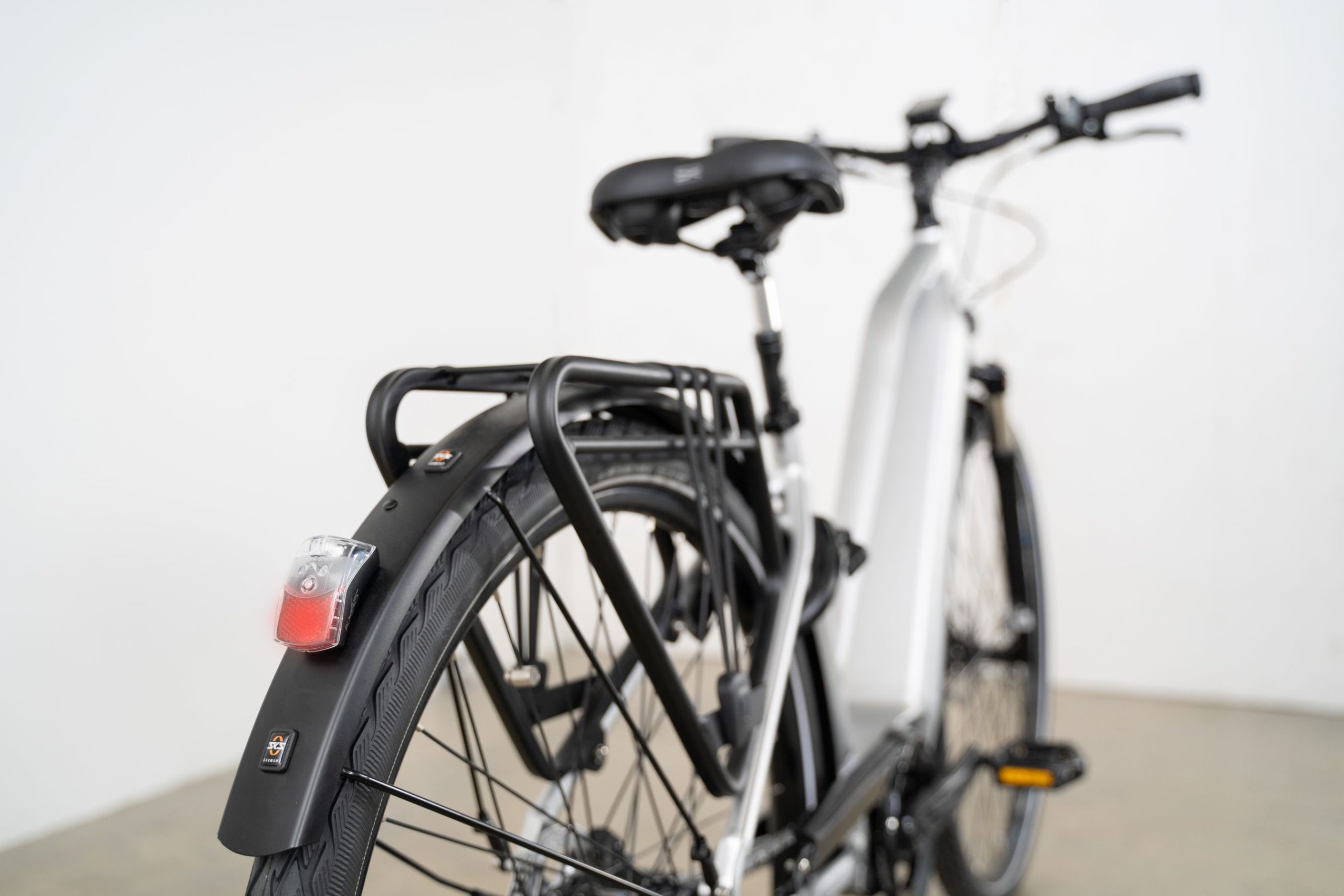

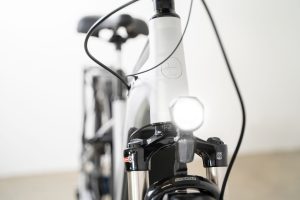

Lights Dutch Spanninga
Fork SR Suntour NCX
Motor Features

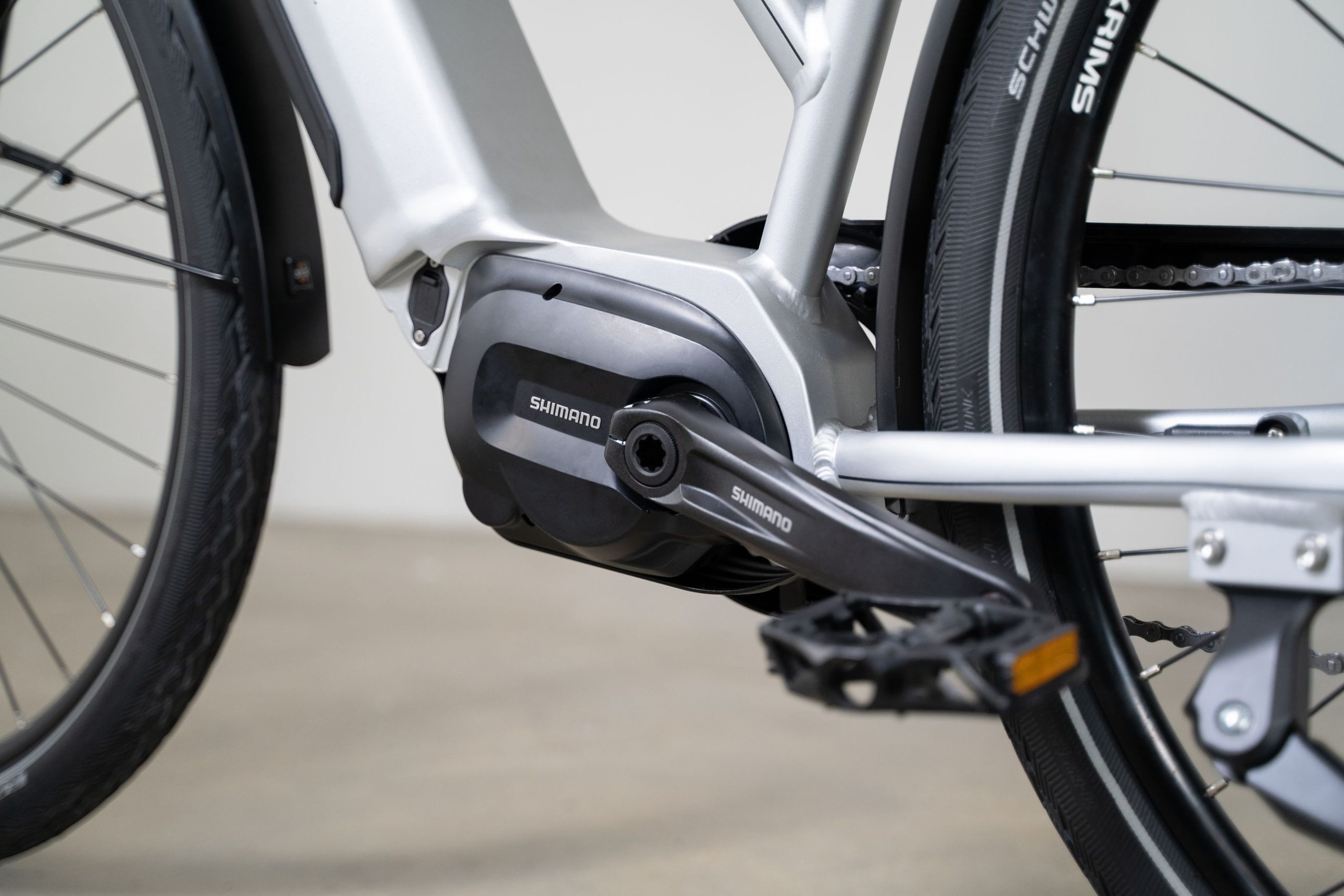

Motor 250W Shimano STEPS
Max Speed Assisted Motor Speed: 15.5 mph or 25 kmh
Location of Motor In the central crank
Battery Type Lithium-Polymer Sony
Battery Weight 2.9 kg
Power 36V Large 504Wh
Distance 90+ miles under Eco PAS mode
Lifetime 1000 charge-discharge cycles
Charge Time 3 to 4 hours

Reviews of the Volt Infinity LS Shimano STEPS

*The distances shown on our website are based on real tests under the following conditions:
Rider Weight: 11 Stone (Please note 11 Stone is the weight of the test rider and our e-bikes a capable of carrying riders well over this specified weight)
Controller Speed Setting: low to medium
Riding conditions: warm summer day
Road conditions: tarmacked good condition roads, quite flat terrain
Wind level: low
Rider fitness level: medium
Rider effort: moderate

For more information on electric bike battery care please see the Electric Bike Store's Battery Guide

**Volt stipulate that bike is designed to carry a maximum load of 120 kg including luggage.

If the owner is heavier than the maximum load weight there is a risk that the frame and bike components could wear more quickly or even break.
If the rider exceeds this maximum weight warranties may be treated null and void.

***If the end consumer's eBike is intended for commercial use ( e.g. rental company, messenger service), the warranty period lasts 12 months. Certain warranty exclusions may occur, please discuss with the manufacturer.

****All pictures shown are for illustration purpose only, actual product and specification may vary due to product enhancement.
